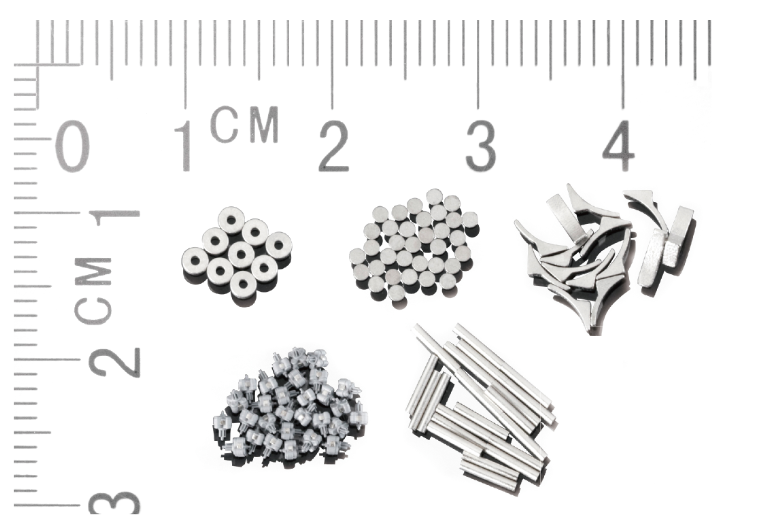

Micro precision magnet
Our company can provide precision process and design for various hard brittle permanent
magnetic materials,and have absolute advantage in processing of micro high precision magnet,
especially for producing various micro high precision slot hole thin-wall ring magnets,disc
magnets and block magnets,and also can according to customer's requirements to develop kinds
of micro precision irregular shape magnets. At present,we have the products with highest accuracy
+/-0.005mm.We exports various micro precision magnets with qty almost 260,000,000PCS to
Switerland,Japan,Germany,USA,HK and other countries per year, and favored by all of our customers.
Proprietary technology and advantages
Devoted to R&D and manufacture for micro precision magnet in past more than 10 years
Senior engineers have professional technology capability and abundant experience
Product precision is high,consistency is good, the magnetic property is stable and harmonious
Various magnets with different size and magnetic property and manufactured according to customers need
Provide application oriented magnetic assembly and improved solutions
With strict QC system:has independent and complete product test and quality control system

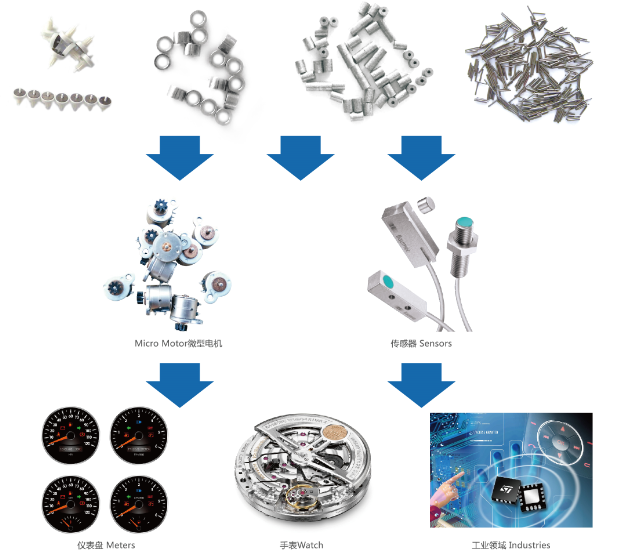

Application Field
Widely applied to micro motor,optical communication,quartz watch,instrument and meter,sensor,
electro acoustical,etc.
